4 charging ports support

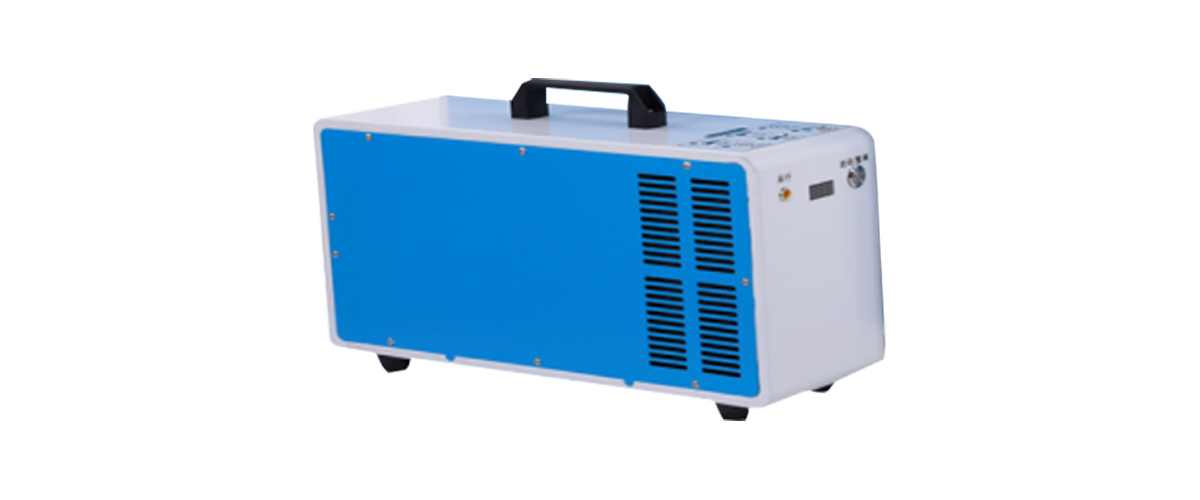

Solar MPPT EV charger
solar to car directely
| Name: | Content: |
|---|---|
| Material: | Aluminum alloy |
| Size: | 490×158×386 mm |
| MPPT channels: | 1 channel |
| Max output Power: | 20 KW |
| MPPT working voltage: | 260-720V DC |
| Full load voltage: | 600 ~ 720V DC |
| MPPT starting voltage: | 325V DC |
| Max input current: | 41A |
| MPPT Efficiency: | 99.5% ( Power > 5KW) |
| Accessory power supply: | 12V DC |
| Charging voltage: | 200 ~ 750V DC |
| Charging current: | 0 ~ 60 A |
| Cable length: | 3m or 5m |
| Working temperature: | -20~50℃ |
| Humidity: | 5~90RH% |
| Max mean sea level: | 2000 M |
| GB/T standard: | GB/T 18487 、GB/T 20234、GB/T 27930 |
| CCS1 CCS2: | EN61851、EN62196、ISO15118、DIN70121 |
